CNC 石材台麵加工中心
華龍 MATE 數控加工中心是一款集高效鋸切和精確修邊功能於一體的綜合性設備，非常適合廚房台麵的加工製作。它具備五軸龍門鋸、三軸數控銑床和邊緣拋光機的功能，其中包括：

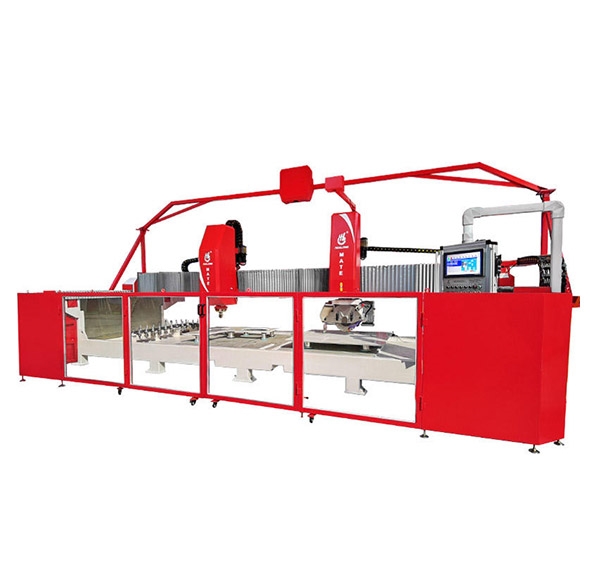

Hualong MATE cnc working center is an all-in-one machine, combining efficient sawing and accurate edging capabilities, ideal for kitchen countertops fabrication. It includes functionality of a 5 axis bridge saw, a 3 axis cnc router and edge polisher, among them:
* Italian ESA cnc system and Pegasus software,
* 3 axis + 5 axis interpolation,
* spindle with automatic tool change ISO40,
*able to reach a maximum of 9000 RPM,
*with trough-spindle lubrication,
*up to 22 tool change positions,
*vacuum manipulator system for parts movement during automatic cut process,
*on-board camera and projector.
It can perform each type of cutting, mitering, raw and polished contouring, as well as milling, drilling, counter sinking, bas relief, and writing.
This machine can be customized to the customer's needs, it is the winning solution for every fabshop.
It can perform each type of cutting, mitering, raw and polished contouring, as well as milling, drilling, counter sinking, bas relief, and writing.
This machine can be customized to the customer's needs, it is the winning solution for every fabshop.
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
成年免费大片黄在线观看app下载機械，數控五軸橋切機，四軸橋切機，4+1橋切，5+1橋切，三軸橋切機，紅外線橋切機，石材切機，石材加工廠設備，石材拋光機，石材拋光設備，石材加工中心，台麵加工中心，水刀，水刀切割機，礦山開采設備，礦山圓盤鋸，圓盤雙刀鋸，礦山機，礦山鋸。
| TECHNICAL DATA | |||
| X軸移動 | Stroke (X-axis) | mm | 3500 |
| Y軸移動 | Stroke (Y-axis) | mm | 2000 |
| Z軸移動 | Stroke (Z-axis) | mm | 320 |
| 主軸電機的功率 | Power of spindle motor | kw | 7.5 |
| 轉速 | Rotating speed | rpm | 0-8000 |
| 刀具夾持器型號 | Tool holder model | BT | 40 |
| 刀具存放位置 | Tool- store position | nr | 22 |
| 工作台尺寸 | Workbench dimension | mm | 3500x2000 |
| 鋸片直徑 | Diameter of saw blade | mm | 酶300-酶350 |
| 最大切割長度 | Max. cutting length | mm | 3500 |
| 最大切割厚度 | Max. cutting thickness | mm | 50 |
| 升降行程 | Max. lifting stroke | mm | 250 |
| 最大吸盤重量 | Max. lifting weight by sunction cups | kg | 200 |
| 主電機功率 | Power of main motor | kw | 15 |
| 往複運動電機的功率 | Power of cutter frame reciproctationg motor | kw | 2 |
| 橫梁移動電機的功率 | Power of crossbeam shifting motor | kw | 1.1 |
| 升降電機功率 | Power of lifting motor | kw | 0.75 |
| 總功率 | Gross power | kw | 29.7 |
| 總重量 | Gross weight | kw | 8500 |
| 尺寸（長 x 寬 x 高） | Dimensions (L x W x H) | mm | 8500x4400x4000 |
