5 Axis Stone數控鋸木機HKNC-450J
采用意大利頂級數控控製係統ESA，是一台全自動兩用機床，由5軸數控鋸和5軸數控噴水機組合而成，用於切割花崗岩、大理石、石英石、石灰石和新興陶瓷材料。
數控鋸用於切割石板，台麵和水槽，刀片輪廓，雕刻等。
水射流切割頭是完美的斜切和通過不同的材料切割成精密複雜的形狀和角度，是切割陶瓷，石材，大理石和花崗岩鑲嵌圖案的理想選擇。


主要特點
5軸鋸-這台機器是一個全插補的5軸橋鋸
*自動頭部旋轉從0°到360°與自動葉片傾斜從0°到90°相結合，使其適合大規模生產運行，同時包含成本。
*可實現不同複雜曲麵的加工，集切削、鑽孔、銑削、雕刻等功能於一體
變成一個有機整體。


5軸水射流-這台機器是一個完全插值的5軸水射流
*自動頭部旋轉從0°到360°結合自動磨料切割頭傾斜從0°到60°精確
斜切邊的內角加工。
* KMT-H20 JET50超壓泵配備西門子PLC和電機。


1)五軸聯動控製，采用意大利數控Esa係統。
2) 19寸彩色觸摸屏，操作簡便。
3) Y軸由龍門係統移動，保證了橋架的完美方形
4)采用最先進的直線滾珠導軌傳動，由伺服電機通過高精度斜齒輪和齒條驅動，保證了運動的絕對精度。
5)數控鋸木機和橋鋸可以快速完成簡單的手工切割，機器也可以導入和使用DXF （AutoCAD）文件
6)工作平台可傾斜85度，便於裝板。
7)照相板嵌套，避免缺陷。
8)手動/自動套料，優化板坯表麵利用率
9) RTCP刀點跟蹤功能，確保加工精度。

10)可選-靜脈匹配很容易匹配完美的每個靜脈，顏色在你的項目接縫。

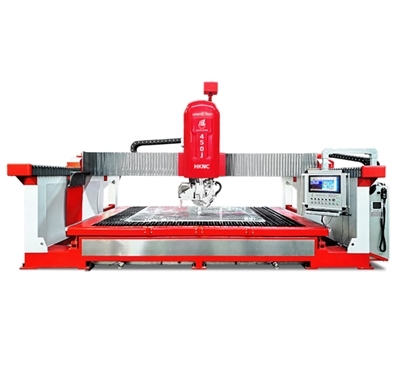

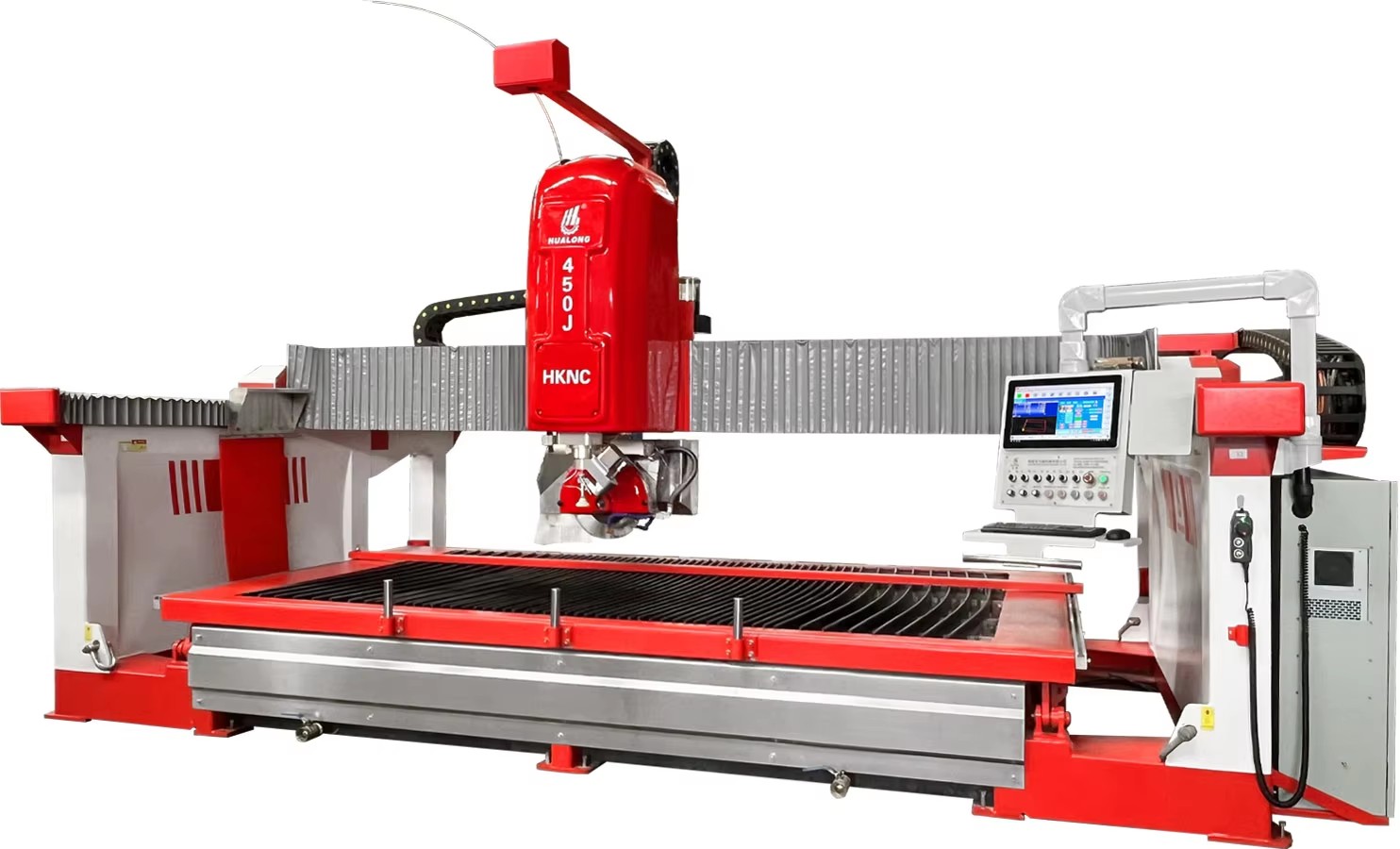

5 Axis Stone CNC Sawjet HKNC-450J
with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.

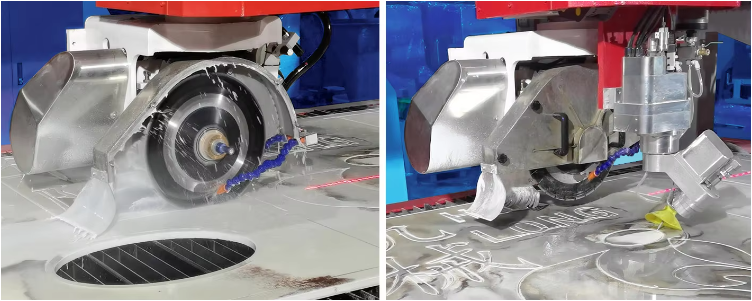

CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.
The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.


Main Features
5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw
* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.


5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.


1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.
5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.

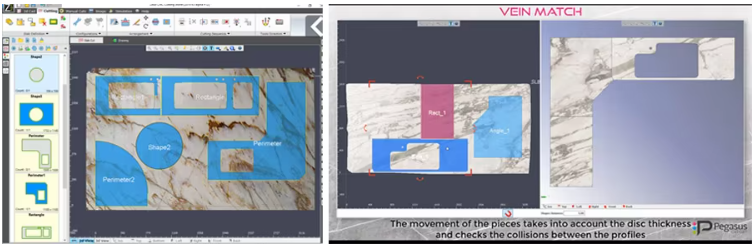

7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
